ciscossis1_thumbCisco Phone Systems are capable of collecting a great deal of call accounting data (such as information inbound and outbound calls as well as internal calls).  Unfortunately, without proprietary Cisco Call Accounting software, accessing this data can be a bit troublesome.  I built an SSIS package to parse the meaningful data out of a Cisco Call Accounting CSV file and insert it into SQL Server where more detailed analysis and reporting could then be performed via SSRS or another tool.

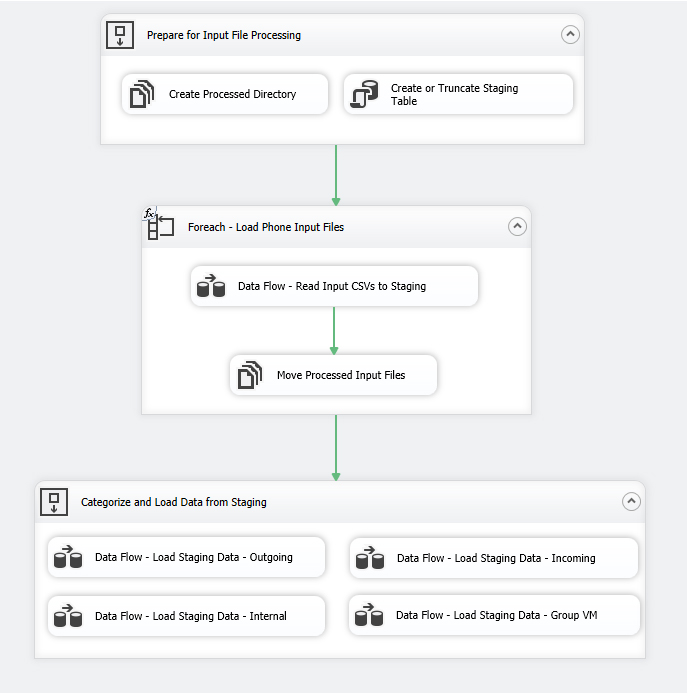

The overall package for Cisco UC SSIS Import

The overall package for Cisco UC SSIS Import

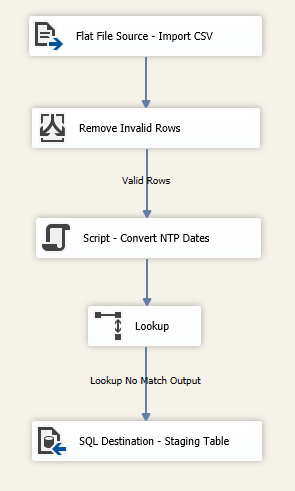

The primary data flow for the Cisco SSIS UC Import Package

The primary data flow for the Cisco SSIS UC Import Package

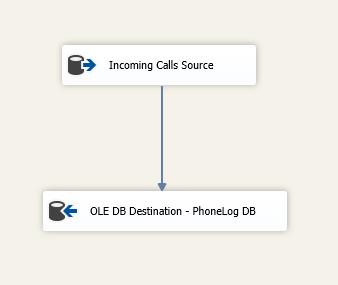

Data flow for final data imports with Cisco SSIS Import

Data flow for final data imports with Cisco SSIS Import
